Chip Solution
Chip Design Solution
01
Chip Design
System Architecture- Processing Core
- NoC/Memory System
External High-speed
Interface- System Architecture
02
Chip Verification
- Bus Functional Modeling
- Module/System Level in a
Unified Testbench - UVM methodology with VIP
- Bus Traffic Modeling &
Performance Verification
03
Chip FPGA prototype
- FPGA Board Design
- Connected multiple FPGA
targeting - Verification with Firmware
- Device Driver, BSP Development
- Linux/RTOS porting
Chip Solution
Chip Solution
From RTL design, platform design and verification, and FPGA verification through DFT insertion, layout, packaging, and testing, we provide the full solution set required to develop and manufacture system semiconductors.
Our Skills

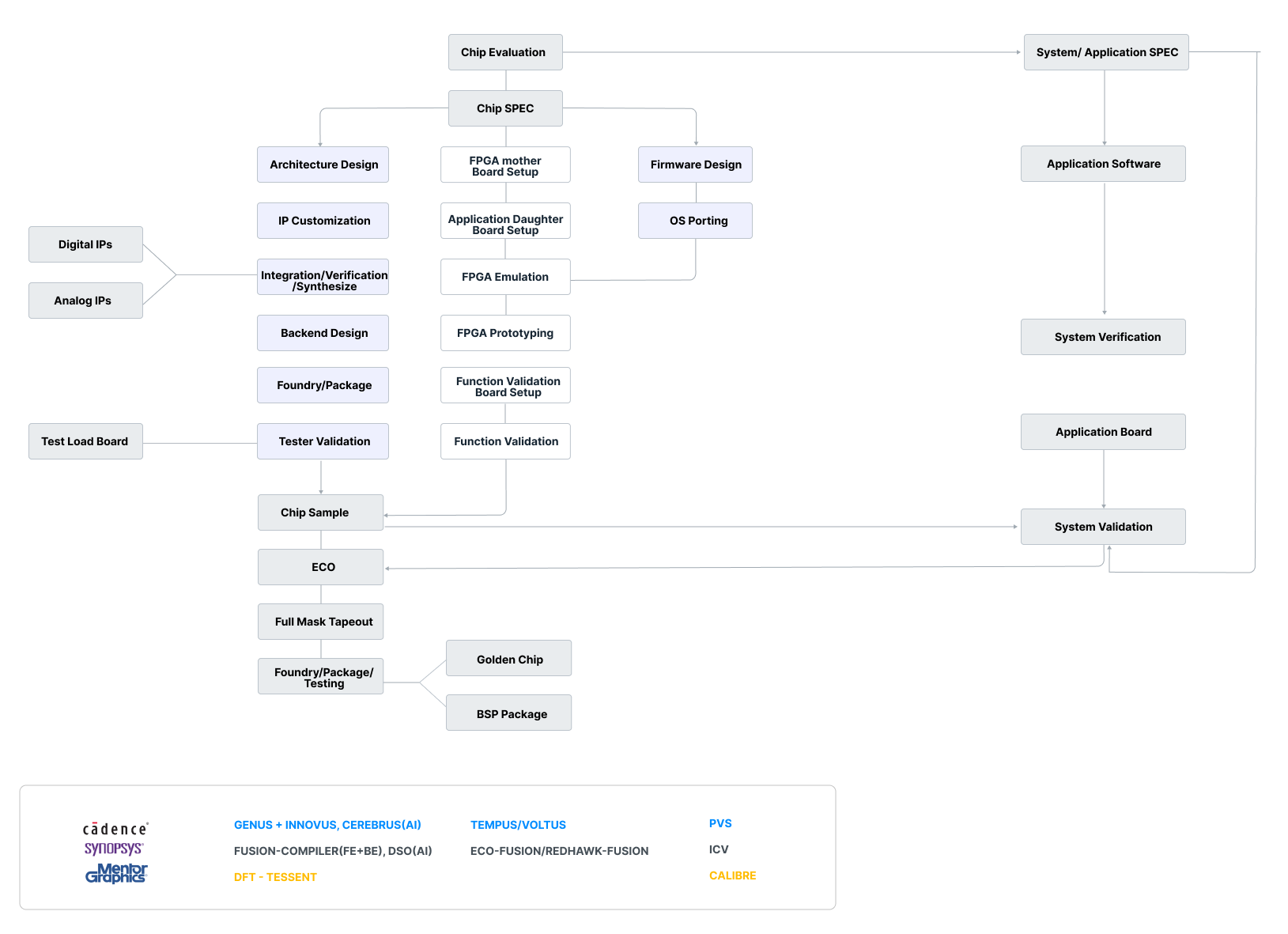

Design Service Flow
Turnkey service expertise and design-flow know-how spanning specification alignment, foundry wafers, and chip-out.
STEP 1
Spec. Decision RTL Coding
STEP 2
Synthesis
STEP 3
Netlist Hand-off
STEP 4
DFT Service
STEP 5
Placement Routing
STEP 6
Verification & PG
STEP 7
Test Vector Generation
STEP 8
Failure Analysis
Flow
LET'S Chip flow
- ARM-based Chip System : Ready for Entry-to-Cutting Edge
- 3rd Party IP with Partnership
- Early Start and Fast Optimization
Chip System Platform
- Systematic Configured & Re-usable Environment
- All Verification Cases from Top to Sub in One Environment
- Configurable Alternative Models for Integrated Units
- Light and Reliable against Integration Issue
- Easy Porting your System into One Verification Env.
Chip Verification Platform
